Current Transformers

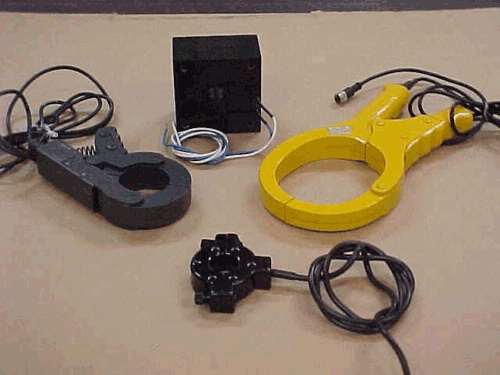

ABW Engineering manufactures a variety of current transformers in fixed, bolt-on and clip-on formats.
Our clip-on CT's are widely used by testing authorities, where high current capability and measurement accuracy are critical.
We manufacture to Australian standards for either measurement or protection applications.Our current transformers are manufactured in various ratings and classes up to 5000Amps.
The table below lists some of our more popular clip-on and bolt-on type current transformers.
ABW PART No | TYPE | DESCRIPTION | CLASS |
145/84 | Clip-On | 100A:0.2A, 50mm ID, 2.2ohm Burden. | 2M |
145/85 | Clip-On | 300A:0.2A, 50mm ID, 2.2ohm Burden. | 2M |
145/86 | Clip-On | 500A:0.2A, 50mm ID, 2.2ohm Burden. | 2M |
104/16 | Clip-On | 1000A:0.2A, 85mm OD Cable max, 2.2ohm Burden. | 1M |
129/25 | Clip-On | 2000A:0.2A, 85mm OD Cable max, 2.2ohm Burden. | 1M |
126/23SL | Bolt-On | 100A:700mV, 25mm ID. | 2M |
126/24SL | Bolt-On | 200A:700mV, 25mm ID. | 2M |
